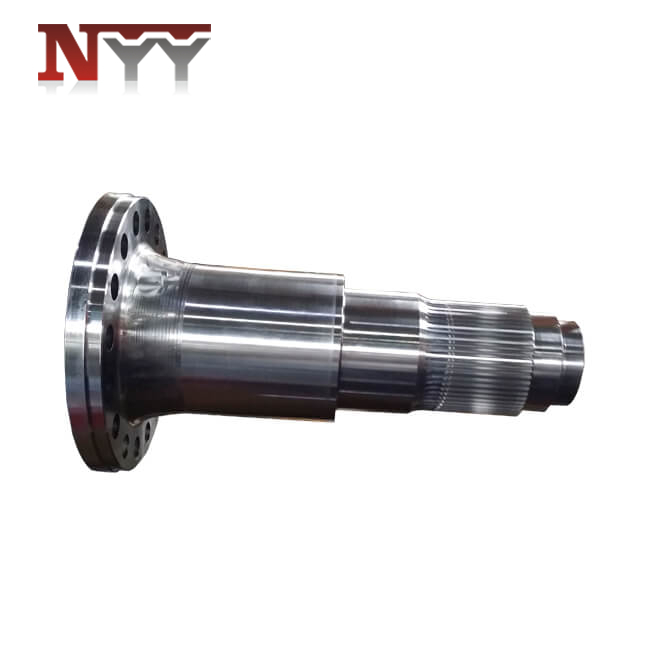

42CrMo off-high-road spline coupling

  • involute

  • 42CrMo

  • 30°

  • DIN 3962 class 6

Availability:
Quantity:

服务图片

Gear Basic Data

Gear Tooth Shape involute
Gear Material 42CrMo
Gear Process forging, lathing, hobbing, external grinding, tooth grinding
Pressure Angle 30°
Quality level DIN 3962 class 6
Gear Type DP=10/20, Z=61, β=0°


CAPABILITIES OF GEAR/ SPLINE


INTERNAL GEARS AND INTERNAL SPLINES


MILLING

SHAPING

TOOTH GRINDING

Maximum O.D.

2500 mm

2500 mm

2500 mm

Minimum I.D.

650 mm

50 mm

100 mm

Maximum Face Width

500 mm

500 mm

500 mm

Maximum Diametral Pitch

DP 1

DP 1

DP 0.5

Maximum Module

26 mm

26 mm

45 mm

AGMA Level/ DIN Level

DIN Class 8

DIN Class 8

DIN Class 4

Tooth Surface Finishing

Ra 3.2

Ra 3.2

Ra 0.6

Maximum Helix Angle

±22.5°

±22.5°

±45°





EXTERNAL GEARS AND EXTERNAL SPLINES


HOBBING

MILLING

TOOTH GRINDING

Maximum O.D.

1250 mm

2500 mm

2500 mm

Minimum O.D.

20 mm

200 mm

20 mm

Maximum Face Width

500 mm

500 mm

1480 mm

Maximum Diametral Pitch

DP 1

DP 1

DP 0.5

Maximum Module

26 mm

26 mm

45 mm

AGMA Level/ DIN Level

DIN Class 8

DIN Class 8

DIN Class 4

Tooth Surface Finishing

Ra 3.2

Ra 3.2

Ra 0.6

Maximum Helix Angle

±45°

±45°

±45°
