Feed And Biofuel Machinery Bearing Housing with Spline

  • involute

  • QT400-15

  • 20°

  • DIN 3962 Class 7

Availability:
Quantity:
Inquire Add to Basket

服务图片

Gear Basic Data
Gear Tooth Shape involute
Gear Material QT400-15
Gear Process foging, lathing, hobbing, internal and plane grinding, shaping
Pressure Angle 20°
Quality level DIN 3962 Class 7
Gear Type M=4，Z=40，a=20°
Total Length mm 270
Packing Seaworthy package
MOQ 5


CAPABILITIES OF GEAR/ SPLINE


INTERNAL GEARS AND INTERNAL SPLINES

MILLING

SHAPING

TOOTH GRINDING

Maximum O.D.

2500 mm

2500 mm

2500 mm

Minimum I.D.

650 mm

50 mm

100 mm

Maximum Face Width

500 mm

500 mm

500 mm

Maximum Diametral Pitch

DP 1

DP 1

DP 0.5

Maximum Module

26 mm

26 mm

45 mm

AGMA Level/ DIN Level

DIN Class 8

DIN Class 8

DIN Class 4

Tooth Surface Finishing

Ra 3.2

Ra 3.2

Ra 0.6

Maximum Helix Angle

±22.5°

±22.5°

±45°




EXTERNAL GEARS AND EXTERNAL SPLINES

HOBBING

MILLING

TOOTH GRINDING

Maximum O.D.

1250 mm

2500 mm

2500 mm

Minimum O.D.

20 mm

200 mm

20 mm

Maximum Face Width

500 mm

500 mm

1480 mm

Maximum Diametral Pitch

DP 1

DP 1

DP 0.5

Maximum Module

26 mm

26 mm

45 mm

AGMA Level/ DIN Level

DIN Class 8

DIN Class 8

DIN Class 4

Tooth Surface Finishing

Ra 3.2

Ra 3.2

Ra 0.6

Maximum Helix Angle

±45°

±45°

±45°


Previous:
Next:
Product Inquiry

Related Products

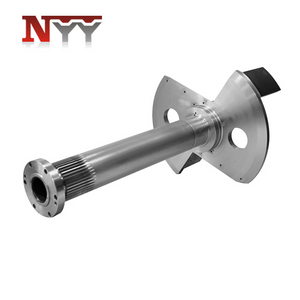

Feed And Biofuel Machinery Roller Main Shaft
Feed And Biofuel Machinery Roller Main Shaft
Feed And Biofuel Machinery Main Shaft
Feed And Biofuel Machinery Main Shaft

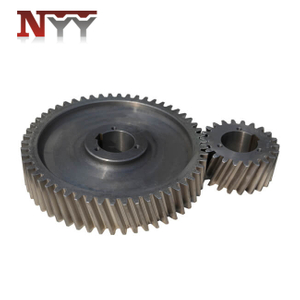

Feed and biofuel machinery 17CrNiMo6 alloy steel M5 DIN class 6 big helical gear
Feed and biofuel machinery 17CrNiMo6 alloy steel M5 DIN class 6 big helical gear

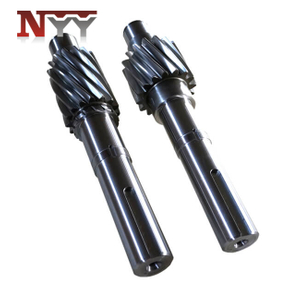

Food and feed machinery 18CrNiMo7-6 tooth grinding gear shaft
