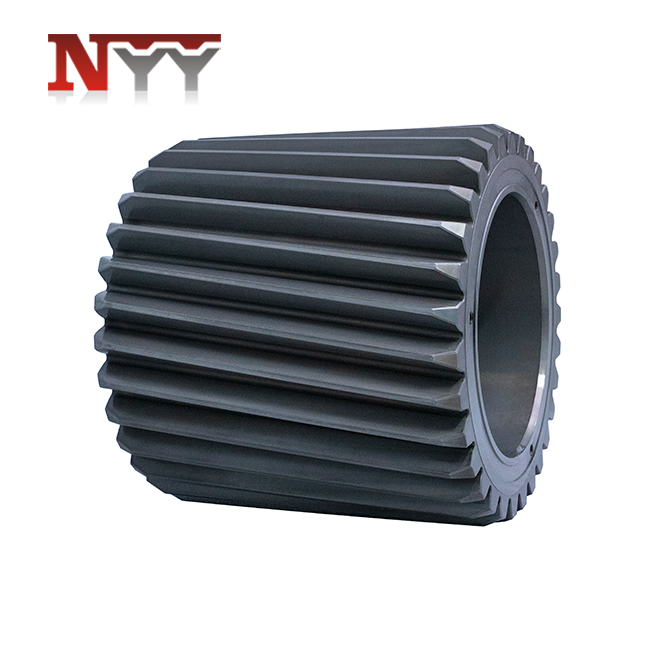

Wind Tutbine 6X Gearbox 1st Stage Planetary Gear

  • involute

  • 18CrNiMo7-6

  • 25°

  • ISO 1328 Class 5

Availability:
Quantity:
Inquire Add to Basket

服务图片

Gear Basic Data
Gear Tooth Shape involute
Gear Material 18CrNiMo7-6
Gear Process foging, lating, hobbing, internal and plane grinding, tooth grinding
Pressure Angle 25°
Quality level ISO 1328 Class 5
Gear Type Mn=19.7, Z=31, β=7°, X=0.2237
Total Length mm 620
Packing Seaworthy package
MOQ 10


CAPABILITIES OF GEAR/ SPLINE


INTERNAL GEARS AND INTERNAL SPLINES

MILLING

SHAPING

TOOTH GRINDING

Maximum O.D.

2500 mm

2500 mm

2500 mm

Minimum I.D.

650 mm

50 mm

100 mm

Maximum Face Width

500 mm

500 mm

500 mm

Maximum Diametral Pitch

DP 1

DP 1

DP 0.5

Maximum Module

26 mm

26 mm

45 mm

AGMA Level/ DIN Level

DIN Class 8

DIN Class 8

DIN Class 4

Tooth Surface Finishing

Ra 3.2

Ra 3.2

Ra 0.6

Maximum Helix Angle

±22.5°

±22.5°

±45°




EXTERNAL GEARS AND EXTERNAL SPLINES

HOBBING

MILLING

TOOTH GRINDING

Maximum O.D.

1250 mm

2500 mm

2500 mm

Minimum O.D.

20 mm

200 mm

20 mm

Maximum Face Width

500 mm

500 mm

1480 mm

Maximum Diametral Pitch

DP 1

DP 1

DP 0.5

Maximum Module

26 mm

26 mm

45 mm

AGMA Level/ DIN Level

DIN Class 8

DIN Class 8

DIN Class 4

Tooth Surface Finishing

Ra 3.2

Ra 3.2

Ra 0.6

Maximum Helix Angle

±45°

±45°

±45°
